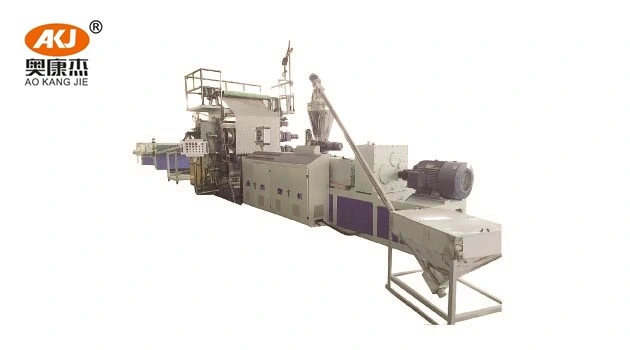

Pvc imitation marble sheet production line
Pvc imitation marble sheet production line is used to produce pvc marble sheet with width of sheet 1220mm and length of sheet 2440mm length,thickness mostly 2.8 to 3.5mm.The surface of pvc marble sheet generally treated by hot stamping or lamination,then coated by uv varnish.By switching film with different color,it can produce pvc marble sheet with different color.After coating uv glossy varnish, the surface of pvc marble sheet is more smooth and wearable.
Machine details of pvc lamination marble sheet making machine :
|1||Sjsz80/156 conical twin screw extruder||1set|
|2||Hanger plate mold||1set|
|3||Three roller calendaring machine||1set|
|4||Cooling bracket and trimming device||1set|
Main advantage of akj pvc lamination marble sheet making machine :
1.The screw adopt the design of special mixing material function and high plasticization capacity.This guarantee the uniformity of plastic mleting,coloring and high output.
2.Clothes rack type mold die adopt double throtting design,which can make more precision of adjusting of flooring thickness.
3.The ±1ºc precision degree of temperature control can control the plasticization process,thickness and surface smooth of sheet accurately.
4.The roller position can be put by vertical or horizontal,which can give more selection basing on the different thickness of sheet
5.The screw adjusting and oil pressure press-roller double direction adjusting can control the thickness of sheet accurately.
Rigid core flooring is extruded by extruder and t-die extrusion pvc substrate,with three roller calendar,pvc color film layer and high glossy uv varnish coating.
